OFI D1-T Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model OFID1-25/45***T
item 5 10 15 20 30 40 50 60 80 100 120 150 200 250 300
Rated voltage (AC,DC) 250V/450V
Rated current (AC,DC) 5A 10A 15A 20A 30A 40A 50A 60A 80A 100A 120A 150A 200A 250A 300A
Test voltage 2,500VAC
Isolation resistance 300MΩ (1000V, 1Min)
Leakage current 10mA max
Operating temperature -25 ℃ ~ +85 ℃

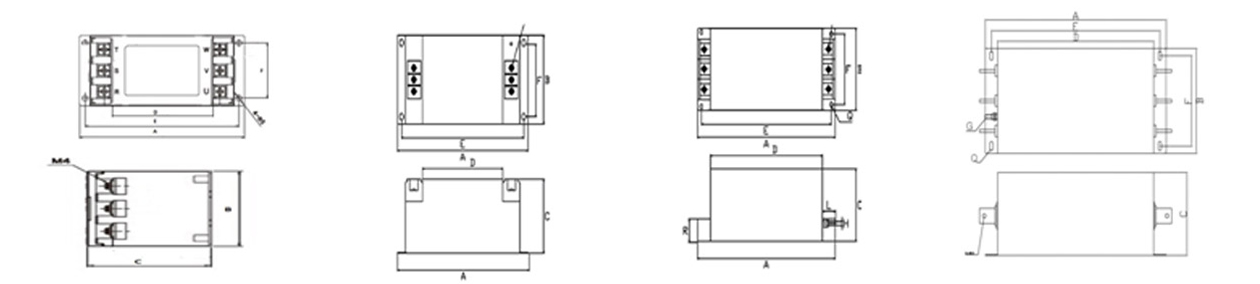

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

AC250V3급 AC450V3급 도면
모델명 정격전류 D E A B F C
OF ID1 -25005T OF ID1 -45005T 5A 75 87.5 105 54 45.6 45 D1 5~20A (100SIZE - 105)
OF ID1 -25010T OF ID1 -45010T 10A
OF ID1 -25015T OF ID1 -45015T 15A
OF ID1 -25020T OF ID1 -45020T 20A
OF ID1 -25030T OF ID1 -45030T 30A 115 138.5 150 64 55 55 D1 30~50A (148SIZE)
OF ID1 -25040T OF ID1 -45040T 40A
OF ID1 -25050T OF ID1 -45050T 50A
OF ID1 -25060T OF ID1 -45060T 60A 120 175 185 110 85 60 D1 60~80(185SIZE)
OF ID1 -25080T OF ID1 -45080T 80A
OF ID1 -250100T OF ID1 -450100T 100A 166 219 235 120 100 75 D1 100~120(235SIZE)
OF ID1 -250120T OF ID1 -450120T 120A
OF ID1 -250150T OF ID1 -450150T 150A 300 345 366 160 135 140 D1 150~300(366SIZE)
OF ID1 -250200T OF ID1 -450200T 200A
OF ID1 -250250T OF ID1 -450250T 250A
OF ID1 -250300T OF ID1 -450300T 300A

OFI D2-T Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model OFID2-25/45***T
item 5 10 15 20 30 40 50 60 80 100 120 150 200 250 300
Rated voltage (AC,DC) 250V/450V
Rated current (AC,DC) 5A 10A 15A 20A 30A 40A 50A 60A 80A 100A 120A 150A 200A 250A 300A
Test voltage 2,500VAC
Isolation resistance 300MΩ (1000V, 1Min)
Leakage current 20mA max
Operating temperature -25 ℃ ~ +85 ℃

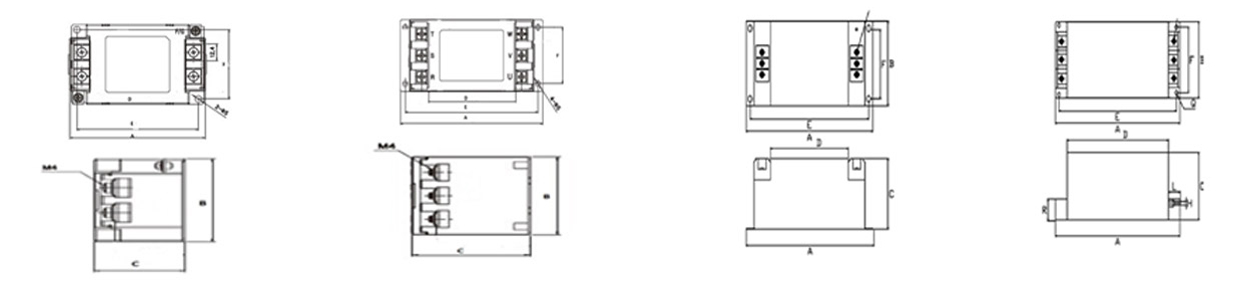

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

AC250V3급 AC450V3급 도면
모델명 정격전류 D E A B F C
OF ID2 -25005T OF ID2 -45005T 5A 75 87.5 100 54 45.6 45 D2 5~10 (100SIZE)
OF ID2 -25006T OF ID2 -45006T 6A
OF ID2 -25010T OF ID2 -45010T 10A
OF ID2 -25015T OF ID2 -45015T 15A 115 138.5 145 64 55 55 D2 15 (148SIZE)
OF ID2 -25020T OF ID2 -45020T 20A 149 185 200 100 80 70 D2 20~30 (200SIZE)
OF ID2 -25030T OF ID2 -45030T 30A
OF ID2 -25040T OF ID2 -45040T 40A 149 225 240 120 100 100 D2 40~60 (240SIZE)
OF ID2 -25050T OF ID2 -45050T 50A
OF ID2 -25060T OF ID2 -45060T 60A
OF ID2 -25080T OF ID2 -45080T 80A 290 325 345 160 135 140 D2 80~100 (345SIZE)
OF ID2 -250100T OF ID2 -450100T 100A
OF ID2 -250120T OF ID2 -450120T 120A 300 345 356 160 135 140 D2 120~150 (366SIZE)
OF ID2 -250150T OF ID2 -450150T 150A
OF ID2 -250200T OF ID2 -450200T 200A 350 395 415 160 135 140 D2 200~300 (416SIZE)
OF ID2 -250250T OF ID2 -450250T 250A
OF ID2 -250300T OF ID2 -450300T 300A

OFI D3-T Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model OFID3-25/45***T
item 5 10 15 20 30 40 50 60 80 100 120 150 200 250 300
Rated voltage (AC,DC) 250V/450V
Rated current (AC,DC) 5A 6A 10A 20A 30A 40A 50A 60A 80A 100A 120A 150A 200A 250A 300A
Test voltage 2,500VAC
Isolation resistance 300MΩ (1000V, 1Min)
Leakage current 20mA max
Operating temperature -25 ℃ ~ +85 ℃

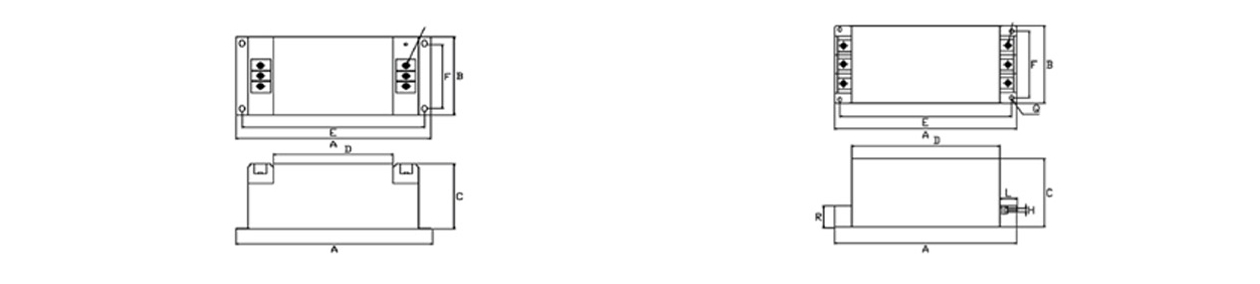

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

AC250V3급 AC450V3급
모델명 정격전류 D E A B F C
OF ID3 -25005T OF ID3 -45005T 5A 115 138.5 145 64 55 55
OF ID3 -25006T OF ID3 -45006T 6A
OF ID3 -25010T OF ID3 -45010T 10A
OF ID3 -25020T OF ID3 -45020T 20A 125 185 200 100 80 70
OF ID3 -25030T OF ID3 -45030T 30A
OF ID3 -25040T OF ID3 -45040T 40A 149 225 240 120 100 100
OF ID3 -25050T OF ID3 -45050T 50A
OF ID3 -25060T OF ID3 -45060T 60A
OF ID3 -25080T OF ID3 -45080T 80A 290 325 345 160 135 140
OF ID3 -250100T OF ID3 -450100T 100A
OF ID3 -250120T OF ID3 -450120T 120A 300 345 356 160 135 140
OF ID3 -250150T OF ID3 -450150T 150A
OF ID3 -250200T OF ID3 -450200T 200A 350 395 415 160 135 140
OF ID3 -250250T OF ID3 -450250T 250A
OF ID3 -250300T OF ID3 -450300T 300A

OFI T1-T Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model OFIT1-25/45***T
item 5 10 15 20 30 40 50 60 75 80 100
120 150 200 250 300 350 400 450 500 600 700
Rated voltage (AC,DC) 250V/450V
Rated current (AC,DC) 5A 10A 15A 20A 30A 40A 50A 60A 75A 80A 100A
120A 150A 200A 250A 300A 350A 400A 450A 500A 600A 700A
Test voltage 1,500VAC
Isolation resistance 300MΩ (1000V, 1Min)
Leakage current 100mA max
Operating temperature -25 ℃ ~ +85 ℃

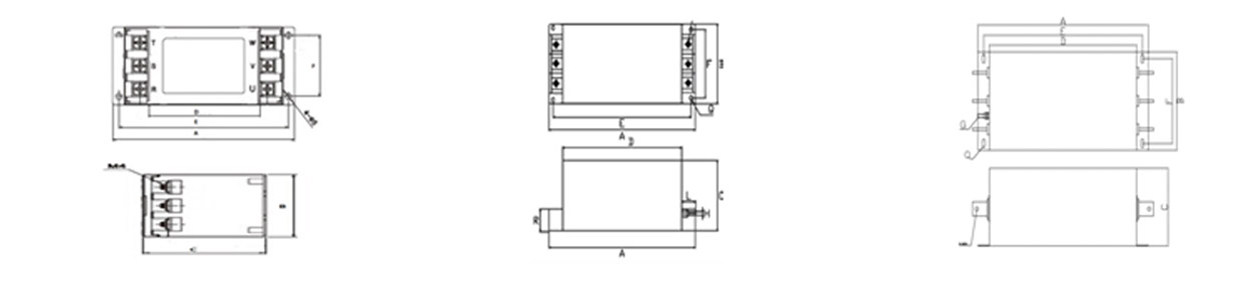

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

AC250V3급 AC450V3급 도면
모델명 정격전류 D E A B F C
OF IT1 -25005T OF IT1 -45005T 5A 115 138.5 150 64 55 55 T1 5~20(148SIZE)
OF IT1 -25010T OF IT1 -45010T 10A
OF IT1 -25015T OF IT1 -45015T 15A
OF IT1 -25020T OF IT1 -45020T 20A
OF IT1 -25030T OF IT1 -45030T 30A 120 175 185 110 85 60 T1 30~50(185SIZE)
OF IT1 -25040T OF IT1 -45040T 40A
OF IT1 -25050T OF IT1 -45050T 50A
OF IT1 -25060T OF IT1 -45060T 60A T1 60~100 (235SIZE)
OF IT1 -25065T OF IT1 -45065T 65A
OF IT1 -25070T OF IT1 -45070T 70A
OF IT1 -25080T OF IT1 -45080T 80A 166 219 235 120 100 75
OF IT1 -250100T OF IT1 -450100T 100A
OF IT1 -250120T OF IT1 -450120T 120A 300 345 366 160 135 140 T1 120~150 (366SIZE)
OF IT1 -250150T OF IT1 -450150T 150A
OF IT1 -250200T OF IT1 -450200T 200A 350 395 416 160 135 140 T1 200~300 (416SIZE)
OF IT1 -250250T OF IT1 -450250T 250A
OF IT1 -250300T OF IT1 -450300T 300A
OF IT1 -250350T OF IT1 -450350T 350A 410 440 470 210 170 210 T1 350~450A(470SIZE)
OF IT1 -250400T OF IT1 -450400T 400A
OF IT1 -250450T OF IT1 -450450T 450A
OF IT1 -250500T OF IT1 -450500T 500A 500 540 580 280 240 220 T1 500~700A(580SIZE)
OF IT1 -250600T OF IT1 -450600T 600A
OF IT1 -250700T OF IT1 -450700T 700A

OFI T2-T Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model OFIT2-25/45***T
item 5 10 15 20 30 40 50 60 65 75 80 100
120 150 200 250 300 350 400 450 500 600 700 -
Rated voltage (AC,DC) 250V/450V
Rated current (AC,DC) 5A 10A 15A 20A 30A 40A 50A 60A 65A 75A 80A 100A
120A 150A 200A 250A 300A 350A 400A 450A 500A 600A 700A -
Test voltage 1,500VAC
Isolation resistance 300MΩ (1000V, 1Min)
Leakage current 100mA max
Operating temperature -25 ℃ ~ +85 ℃

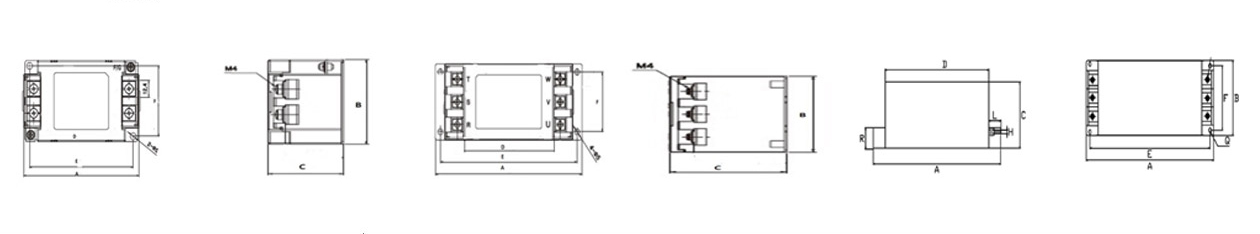

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

AC250V3급 AC450V3급 도면
모델명 정격전류 D E A B F C
OF IT2 -25005T OF IT2 -45005T 5A 125 185 200 100 80 70 T2 5~20(200SIEZE)
OF IT2 -25010T OF IT2 -45010T 10A
OF IT1 -25015T OF IT1 -45015T 15A
OF IT2 -25020T OF IT2 -45020T 20A
OF IT2 -25030T OF IT2 -45030T 30A 149 225 240 120 100 100 T2 30~75(240SIZE)
OF IT2 -25040T OF IT2 -45040T 40A
OF IT2 -25050T OF IT2 -45050T 50A
OF IT2 -25060T OF IT2 -45060T 60A
OF IT2 -25065T OF IT2 -45065T 65A
OF IT2 -25070T OF IT2 -45070T 70A
OF IT2 -25080T OF IT2 -45080T 80A 290 325 345 160 135 140 T2 80~100(345SIZE)
OF IT2 -250100T OF IT2 -450100T 100A
OF IT2 -250120T OF IT2 -450120T 120A 300 345 365 160 135 140 T2 120~150 (366SIZE)
OF IT2 -250150T OF IT2 -450150T 150A
OF IT2 -250200T OF IT2 -450200T 200A 350 395 415 160 135 140 T2 200~300 (416SIZE)
OF IT2 -250250T OF IT2 -450250T 250A
OF IT2 -250300T OF IT2 -450300T 300A
OF IT2 -250350T OF IT2 -450350T 350A 410 440 470 210 170 210 T2 350~450A(470SIZE)
OF IT2 -250400T OF IT2 -450400T 400A
OF IT2 -250450T OF IT2 -450450T 450A
OF IT2 -250500T OF IT2 -450500T 500A 500 540 580 280 240 220 T2 500~700A(580SIZE)
OF IT2 -250600T OF IT2 -450600T 600A
OF IT2 -250700T OF IT2 -450700T 700A

OFI T3-T Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model OFIT3-25/45***T
item 5 10 15 20 30 40 50 60 65 75 80 100 120 150 200 250 300
Rated voltage (AC,DC) 250V/450V
Rated current (AC,DC) 5A 10A 15A 20A 30A 40A 50A 60A 65A 75A 80A 100A 120A 150A 200A 250A 300A
Test voltage 1,500VAC
Isolation resistance 300MΩ (1000V, 1Min)
Leakage current 100mA max
Operating temperature -25 ℃ ~ +85 ℃

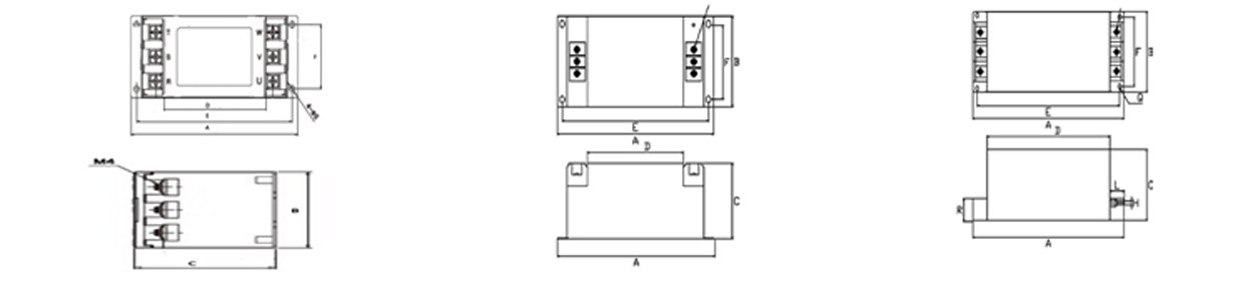

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

AC250V3급 AC450V3급
모델명 정격전류
OF IT3 -25005T OF IT3 -45005T 5A
OF IT3 -25010T OF IT3 -45010T 10A
OF IT3 -25015T OF IT3 -45015T 15A
OF IT3 -25020T OF IT3 -45020T 20A
OF IT3 -25030T OF IT3 -45030T 30A
OF IT3 -25040T OF IT3 -45040T 40A
OF IT3 -25050T OF IT3-45050T 50A
OF IT3 -25060T OF IT3 -45060T 60A
OF IT3 -25065T OF IT3 -45065T 65A
OF IT3 -25070T OF IT3 -45070T 75A
OF IT3 -25080T OF IT3 -45080T 80A
OF IT3 -250100T OF IT3 -450100T 100A
OF IT3 -250120T OF IT3 -450120T 120A
OF IT3 -250150T OF IT3 -450150T 150A
OF IT3 -250200T OF IT3 -450200T 200A
OF IT3 -250250T OF IT3 -450250T 250A
OF IT3 -250300T OF IT3 -450300T 300A
