OFID1-T Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model

OFID1-25/45***T

item

3

5

6

7

10

15

20

30

40

50

60

65

75

80

100

120

150

200

250

300

Rated voltage (AC,DC)

250V/380V/450V/500V

Rated current (AC,DC)

3A

5A

6A

7A

10A

15A

20A

30A

40A

50A

60A

65A

75A

80A

100A

120A

150A

200A

250A

300A

Test voltage

1,500VAC

Isolation resistance

300MΩ (1000V, 1Min)

Leakage current

100mA max(1,500VAC)

Operating temperature

-20℃ ~ +85℃

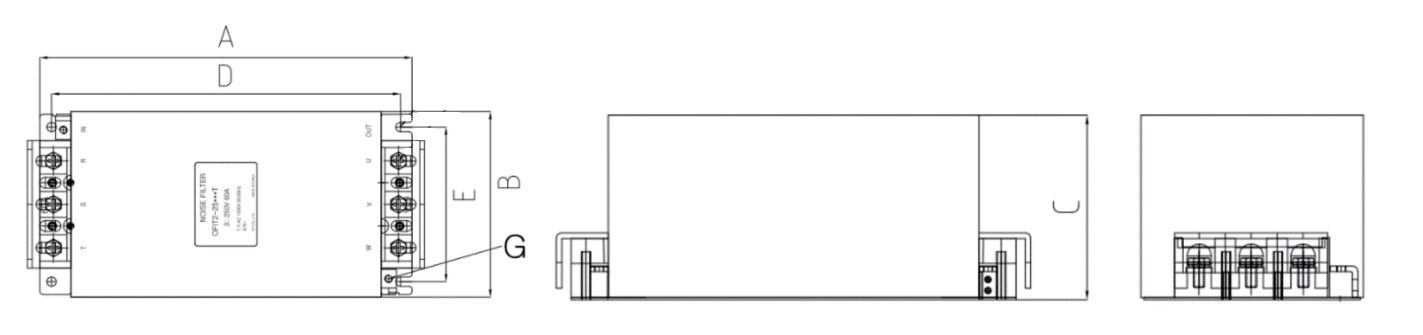

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

250V 형식명	모델명	정격전류	A	B	C	D	E	도면
OFID1-25003T	D1-3	3A	105	54	45	87.5	45.6	D1-3
OFID1-25005T	D1-5	5A						D1-5
OFID1-25006T	D1-6	6A						D1-6
OFID1-25007T	D1-7	7A						D1-7
OFID1-25010T	D1-10	10A						D1-10
OFID1-25015T	D1-15	15A						D1-15
OFID1-25020T	D1-20	20A						D1-20
OFID1-25030T	D1-30	30A						D1-30
OFID1-25040T	D1-40	40A	150	64	55	135.5	54.8	D1-40
OFID1-25050T	D1-50	50A	150	64	55	135.5	54.8	D1-50
OFID1-25060T	D1-60	60A	185	110	60	175	85	D1-60
OFID1-25065T	D1-65	65A						D1-65
OFID1-25075T	D1-75	75A						D1-75
OFID1-25080T	D1-80	80A						D1-80
OFID1-25100T	D1-100	100A	235	120	75	219	100	D1-100
OFID1-25120T	D1-120	120A	235	120	75	219	100	D1-120
OFID1-25150T	D1-150	150A	366	160	140	345	135	D1-150
OFID1-25200T	D1-200	200A						D1-200
OFID1-25250T	D1-250	250A						D1-250
OFID1-25300T	D1-300	300A						D1-300

OFID2-T Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model

OFID2-25/45***T

item

3

5

6

7

10

15

20

30

40

50

60

65

75

80

100

120

150

200

250

300

Rated voltage (AC,DC)

250V/380V/450V/500V

Rated current (AC,DC)

3A

5A

6A

7A

10A

15A

20A

30A

40A

50A

60A

65A

75A

80A

100A

120A

150A

200A

250A

300A

Test voltage

1,500VAC

Isolation resistance

300MΩ (1000V, 1Min)

Leakage current

100mA max(1,500VAC)

Operating temperature

-20℃ ~ +85℃

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

250V 형식명	모델명	정격전류	A	B	C	D	E	도면
OFID2-25003T	FD-3	3A	105	54	45	87.5	45.6	FD-3
OFID2-25005T	FD-5	5A						FD-5
OFID2-25006T	FD-6	6A						FD-6
OFID2-25007T	FD-7	7A						FD-7
OFID2-25010T	FD-10	10A						FD-10
OFID2-25015T	FD-15	15A	150	64	55	135.5	54.8	FD-15
OFID2-25020T	FD-20	20A	200	100	70	185	80	FD-20
OFID2-25030T	FD-30	30A	200	100	70	185	80	FD-30
OFID2-25040T	FD-40	40A	240	120	100	225	100	FD-40
OFID2-25050T	FD-50	50A						FD-50
OFID2-25060T	FD-60	60A						FD-60
OFID2 -25065T	FD-65	65A						FD-65
OFID2 -25075T	FD-75	75A						FD-75
OFID2-25080T	FD-80	80A	345	160	140	323	135	FD-80
OFID2-25100T	FD-100	100A	345	160	140	323	135	FD-100
OFID2-25120T	FD-120	120A	366	160	140	345	135	FD-120
OFID2 -25150T	FD-150	150A	366	160	140	345	135	FD-150
OFID2-25200T	FD-200	200A	416	160	140	396	135	FD-200
OFID2-25250T	FD-250	250A						FD-250
OFID2-25300T	FD-300	300A						FD-300

OFID2-T-F Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model

OFID2-25/45***T-F

item

3

5

6

7

10

15

20

30

40

50

60

65

75

80

100

120

150

200

250

300

Rated voltage (AC,DC)

250V/380V/450V/500V

Rated current (AC,DC)

3A

5A

6A

7A

10A

15A

20A

30A

40A

50A

60A

65A

75A

80A

100A

120A

150A

200A

250A

300A

Test voltage

1,500VAC

Isolation resistance

300MΩ (1000V, 1Min)

Leakage current

100mA max(1,500VAC)

Operating temperature

-20℃ ~ +85℃

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

250V 형식명	모델명	정격전류	A	B	C	D	E	도면
OFID2-25003T-F	HD-3	3A	105	54	45	87.5	45.6	HD-3
OFID2-25005T-F	HD-5	5A						HD-5
OFID2-25006T-F	HD-6	6A						HD-6
OFID2-25007T-F	HD-7	7A						HD-7
OFID2-25010T-F	HD-10	10A						HD-10
OFID2-25015T-F	HD-15	15A	150	64	55	135.5	54.8	HD-15
OFID2-25020T-F	HD-20	20A	200	100	70	185	80	HD-20
OFID2-25030T-F	HD-30	30A	200	100	70	185	80	HD-30
OFID2-25040T-F	HD-40	40A	240	96	91.6	225	50	HD-40
OFID2-25050T-F	HD-50	50A						HD-50
OFID2-25060T-F	HD-60	60A						HD-60
OFID2-25065T-F	HD-65	65A						HD-65
OFID2-25075T-F	HD-75	75A						HD-75
OFID2-25080T-F	HD-80	80A	286	118	111.8	270	68	HD-80
OFID2-25100T-F	HD-100	100A	286	118	111.8	270	68	HD-100
OFID2-25120T-F	HD-120	120A	320	126	118.8	304	72	HD-120
OFID2-25150T-F	HD-150	150A	320	126	118.8	304	72	HD-150
OFID2-25200T-F	HD-200	200A	346	140	135.8	330.2	72	HD-200
OFID2-25250T-F	HD-250	250A						HD-250
OFID2-25300T-F	HD-300	300A						HD-300

OFID2-T-S Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model

OFID2-25/45***T-S

item

3

5

6

7

10

15

20

30

40

50

60

65

75

80

100

120

150

200

250

300

Rated voltage (AC,DC)

250V/380V/450V/500V

Rated current (AC,DC)

3A

5A

6A

7A

10A

15A

20A

30A

40A

50A

60A

65A

75A

80A

100A

120A

150A

200A

250A

300A

Test voltage

1,500VAC

Isolation resistance

300MΩ (1000V, 1Min)

Leakage current

100mA max(1,500VAC)

Operating temperature

-20℃ ~ +85℃

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

250V 형식명	모델명	정격전류	A	B	C	D	E	도면
OFID2-25003T-S	ND-3	3A	105	54	45	87.5	45.6	ND-3
OFID2-25005T-S	ND-5	5A						ND-5
OFID2-25006T-S	ND-6	6A						ND-6
OFID2-25007T-S	ND-7	7A						ND-7
OFID2-25010T-S	ND-10	10A						ND-10
OFID2-25015T-S	ND-15	15A	150	64	55	135.5	54.8	ND-15
OFID2-25020T-S	ND-20	20A	200	100	70	185	80	ND-20
OFID2-25030T-S	ND-30	30A	200	100	70	185	80	ND-30
OFID2-25040T-S	ND-40	40A	240	120	100	225	100	ND-40
OFID2-25050T-S	ND-50	50A						ND-50
OFID2-25060T-S	ND-60	60A						ND-60
OFID2-25065T-S	ND-65	65A						ND-65

OFID2-25075T-S	ND-75	75A						ND-75
OFID2-25080T-S	ND-80	80A	345	160	140	323	135	ND-80
OFID2-25100T-S	ND-100	100A	345	160	140	323	135	ND-100
OFID2-25120T-S	ND-120	120A	366	160	140	345	135	ND-120
OFID2-25150T-S	ND-150	150A	366	160	140	345	135	ND-150
OFID2-25200T-S	ND-200	200A	416	160	140	396	135	ND-200
OFID2-25250T-S	ND-250	250A						ND-250
OFID2-25300T-S	ND-300	300A						ND-300

OFID2-T-S3 Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model

OFID2-25/45***T-S3

item

5

6

10

15

20

30

40

50

60

65

75

80

100

120

150

200

250

300

Rated voltage (AC,DC)

250V/380V/450V/500V

Rated current (AC,DC)

5A

6A

10A

15A

20A

30A

40A

50A

60A

65A

75A

80A

100A

120A

150A

200A

250A

300A

Test voltage

1,500VAC

Isolation resistance

300MΩ (1000V, 1Min)

Leakage current

100mA max(1,500VAC)

Operating temperature

-20℃ ~ +85℃

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

250V 형식명	모델명	정격전류	A	B	C	D	E	도면
OFID2-25005T-S3	SD-5	5A	150	64	55	135.5	54.8	SD-5
OFID2-25006T-S3	SD-6	6A						SD-6
OFID2-25010T-S3	SD-10	10A						SD-10
OFID2-25015T-S3	SD-15	15A						SD-15
OFID2-25020T-S3	SD-20	20A	200	100	70	185	80	SD-20
OFID2-25030T-S3	SD-30	30A	200	100	70	185	80	SD-30
OFID2-25040T-S3	SD-40	40A	240	120	100	225	100	SD-40
OFID2-25050T-S3	SD-50	50A						SD-50
OFID2-25060T-S3	SD-60	60A						SD-60
OFID2-25065T-S3	SD-65	65A						SD-65
OFID2-25075T-S3	SD-75	75A						SD-75
OFID2-25080T-S3	SD-80	80A	345	160	140	323	135	SD-80
OFID2-25100T-S3	SD-100	100A	345	160	140	323	135	SD-100
OFID2-25120T-S3	SD-120	120A	366	160	140	345	135	SD-120
OFID2-25150T-S3	SD-150	150A	366	160	140	345	135	SD-150
OFID2-25200T-S3	SD-200	200A	416	160	140	396	135	SD-200
OFID2-25250T-S3	SD-250	250A						SD-250
OFID2-25300T-S3	SD-300	300A						SD-300

OFIT1-T Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model	OFIT1-25/45***T
item	3	5	6	7	10	15	20	30	40	50	60	65	75	80	100	120	150	200	250	300	350	400	450	500	550	600	650	700
Rated voltage (AC,DC)	250V/380V/450V/500V
Rated current (AC,DC)	3A	5A	6A	7A	10A	15A	20A	30A	40A	50A	60A	65A	75A	80A	100A	120A	150A	200A	250A	300A	350A	400A	450A	500A	550A	600A	650A	700A
Test voltage	1,500VAC
Isolation resistance	300MΩ (1,000V, 1Min)
Leakage current	100mA max(1,500VAC)
Operating temperature	-20℃ ~ +85℃

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

250V 형식명	모델명	정격전류	A	B	C	D	E	도면
OFIT1-25003T	T1-3	3A	150	64	55	135.5	54.8	T1-3
OFIT1 -25005T	T1-5	5A						T1-5
OFIT1 -25006T	T1-6	6A						T1-6
OFIT1 -25007T	T1-7	7A						T1-7
OFIT1 -25010T	T1-10	10A						T1-10
OF IT1 -25015T	T1-15	15A						T1-15
OF IT1 -25020T	T1-20	20A						T1-20
OF IT1 -25030T	T1-30	30A						T1-30
OF IT1 -25040T	T1-40	40A	185	110	60	175	85	T1-40
OFIT1-25050T	T1-50	50A	185	110	60	175	85	T1-50
OFIT1-25060T	T1-60	60A	235	120	75	219	100	T1-60
OFIT1-25065T	T1-65	65A						T1-65
OFIT1-25075T	T1-75	75A						T1-75
OFIT1-25080T	T1-80	80A						T1-80
OFIT1-25100T	T1-100	100A						T1-100
OFIT1-25120T	T1-120	120A	366	160	140	345	135	T1-120
OFIT1-25150T	T1-150	150A	366	160	140	345	135	T1-150
OFIT1-25200T	T1-200	200A	416	160	140	396	135	T1-200
OFIT1-25250T	T1-250	250A						T1-250
OFIT1-25300T	T1-300	300A						T1-300
OFIT1-25350T	T1-350	350A	470	210	210	448	172	T1-350
OFIT1-25400T	T1-400	400A						T1-400
OFIT1-25450T	T1-450	450A						T1-450
OFIT1-25500T	T1-500	500A	580	280	220	540	240	T1-500
OFIT1-25550T	T1-550	550A						T1-550
OFIT1-25600T	T1-600	600A						T1-600
OFIT1-25650T	T1-650	650A						T1-650
OFIT1-25700T	T1-700	700A						T1-700

OFIT2-T Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model	OFIT2-25/45***T
item	3	5	6	7	10	15	20	30	40	50	60	65	75	80	100	120	150	200	250	300	350	400	450	500	550	600	650	700
Rated voltage (AC,DC)	250V/380V/450V/500V
Rated current (AC,DC)	3A	5A	6A	7A	10A	15A	20A	30A	40A	50A	60A	65A	75A	80A	100A	120A	150A	200A	250A	300A	350A	400A	450A	500A	550A	600A	650A	700A
Test voltage	1,500VAC
Isolation resistance	300MΩ (1,000V, 1Min)
Leakage current	100mA max(1,500VAC)
Operating temperature	-20℃ ~ +85℃

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

250V 형식명	모델명	정격전류	A	B	C	D	E	도면
OFIT2-25003T	FT-3	3A	200	100	70	185	80	FT-3
OFIT2-25005T	FT-5	5A						FT-5
OFIT2-25006T	FT-6	6A						FT-6
OFIT2-25007T	FT-7	7A						FT-7
OFIT2-25010T	FT-10	10A						FT-10
OFIT2-25015T	FT-15	15A						FT-15
OFIT2-25020T	FT-20	20A						FT-20
OFIT2-25030T	FT-30	30A	240	120	100	225	100	FT-30
OFIT2-25040T	FT-40	40A						FT-40
OFIT2-25050T	FT-50	50A						FT-50
OFIT2-25060T	FT-60	60A						FT-60
OFIT2-25065T	FT-65	65A						FT-65
OFIT2-25075T	FT-75	75A						FT-75
OFIT2-25080T	FT-80	80A	345	160	140	323	135	FT-80
OFIT2-25100T	FT-100	100A	345	160	140	323	135	FT-100
OFIT2-25120T	FT-120	120A	366	160	140	345	135	FT-120
OFIT2-25150T	FT-150	150A	366	160	140	345	135	FT-150
OFIT2-25200T	FT-200	200A	416	160	140	396	135	FT-200
OFIT2-25250T	FT-250	250A						FT-250
OFIT2-25300T	FT-300	300A						FT-300
OFIT2-25350T	FT-350	350A	470	210	210	448	172	FT-350
OFIT2-25400T	FT-400	400A						FT-400
OFIT2-25450T	FT-450	450A						FT-450
OFIT2-25500T	FT-500	500A	580	280	220	540	240	FT-500
OFIT2-25550T	FT-550	550A						FT-550
OFIT2-25600T	FT-600	600A						FT-600
OFIT2-25650T	FT-650	650A						FT-650
OFIT2-25700T	FT-700	700A						FT-700

OFIT2-T-F Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model

OFIT2-25/45***T-F

item

3

5

6

7

10

15

20

30

40

50

60

65

75

80

100

120

150

200

250

300

Rated voltage (AC,DC)

250V/380V/450V/500V

Rated current (AC,DC)

3A

5A

6A

7A

10A

15A

20A

30A

40A

50A

60A

65A

75A

80A

100A

120A

150A

200A

250A

300A

Test voltage

1,500VAC

Isolation resistance

300MΩ (1000V, 1Min)

Leakage current

100mA max(1,500VAC)

Operating temperature

-20℃ ~ +85℃

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

250V 형식명	모델명	정격전류	A	B	C	D	E	도면
OFIT2-25003T-F	HT-3	3A	200	100	70	185	80	HT-3
OFIT2-25005T-F	HT-5	5A						HT-5
OFIT2-25006T-F	HT-6	6A						HT-6
OFIT2-25007T-F	HT-7	7A						HT-7
OFIT2-25010T-F	HT-10	10A						HT-10
OFIT2-25015T-F	HT-15	15A						HT-15
OFIT2-25020T-F	HT-20	20A						HT-20
OFIT2-25030T-F	HT-30	30A	240	96	91.6	225	50	HT-30
OFIT2-25040T-F	HT-40	40A						HT-40
OFIT2-25050T-F	HT-50	50A						HT-50
OFIT2-25060T-F	HT-60	60A						HT-60
OFIT2-25065T-F	HT-65	65A						HT-65
OFIT2-25075T-F	HT-75	75A						HT-75
OFIT2-25080T-F	HT-80	80A	286	118	111.8	270	68	HT-80
OFIT2-25100T-F	HT-100	100A	286	118	111.8	270	68	HT-100
OFIT2-25120T-F	HT-120	120A	320	126	118.8	304	72	HT-120
OFIT2-25150T-F	HT-150	150A	320	126	118.8	304	72	HT-150
OFIT2-25200T-F	HT-200	200A	346	140	135.8	330.2	72	HT-200
OFIT2-25250T-F	HT-250	250A						HT-250
OFIT2-25300T-F	HT-300	300A						HT-300

OFIT2-T-S Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model	OFIT2-25/45***T-S
item	3	5	6	7	10	15	20	30	40	50	60	65	75	80	100	120	150	200	250	300	350	400	450	500	550	600	650	700
Rated voltage (AC,DC)	250V/380V/450V/500V
Rated current (AC,DC)	3A	5A	6A	7A	10A	15A	20A	30A	40A	50A	60A	65A	75A	80A	100A	120A	150A	200A	250A	300A	350A	400A	450A	500A	550A	600A	650A	700A
Test voltage	1,500VAC
Isolation resistance	300MΩ (1,000V, 1Min)
Leakage current	100mA max(1,500VAC)
Operating temperature	-20℃ ~ +85℃

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

250V 형식명	모델명	정격전류	A	B	C	D	E	도면
OFIT2-25003T-S	NT-3	3A	200	100	70	185	80	NT-3
OFIT2-25005T-S	NT-5	5A						NT-5
OFIT2-25006T-S	NT-6	6A						NT-6
OFIT2-25007T-S	NT-7	7A						NT-7
OFIT2-25010T-S	NT-10	10A						NT-10
OFIT2-25015T-S	NT-15	15A						NT-15
OFIT2-25020T-S	NT-20	20A						NT-20
OFIT2-25030T-S	NT-30	30A	240	120	100	225	100	NT-30
OFIT2-25040T-S	NT-40	40A						NT-40
OFIT2-25050T-S	NT-50	50A						NT-50
OFIT2-25060T-S	NT-60	60A						NT-60
OFIT2-25065T-S	NT-65	65A						NT-65
OFIT2-25075T-S	NT-75	75A						NT-75
OFIT2-25080T-S	NT-80	80A	345	160	140	323	135	NT-80
OFIT2-25100T-S	NT-100	100A	345	160	140	323	135	NT-100
OFIT2-25120T-S	NT-120	120A	366	160	140	345	135	NT-120
OFIT2-25150T-S	NT-150	150A	366	160	140	345	135	NT-150
OFIT2-25200T-S	NT-200	200A	416	160	140	396	135	NT-200
OFIT2-25250T-S	NT-250	250A						NT-250
OFIT2-25300T-S	NT-300	300A						NT-300
OFIT2-25350T-S	NT-350	350A	470	210	210	448	172	NT-350
OFIT2-25400T-S	NT-400	400A						NT-400
OFIT2-25450T-S	NT-450	450A						NT-450
OFIT2-25500T-S	NT-500	500A	580	280	220	540	240	NT-500
OFIT2-25550T-S	NT-550	550A						NT-550
OFIT2-25600T-S	NT-600	600A						NT-600
OFIT2-25650T-S	NT-650	650A						NT-650
OFIT2-25700T-S	NT-700	700A						NT-700

OFIT2-T-S-U Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model

OFIT2-25***T-S-U

item

3

5

6

7

10

15

20

30

40

50

60

65

75

80

100

120

150

200

250

300

Rated voltage (AC,DC)

250V

Rated current (AC,DC)

3A

5A

6A

7A

10A

15A

20A

30A

40A

50A

60A

65A

75A

80A

100A

120A

150A

200A

250A

300A

Test voltage

1,500VAC

Isolation resistance

300MΩ (1000V, 1Min)

Leakage current

100mA max(1,500VAC)

Operating temperature

-20℃ ~ +85℃

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

250V 형식명	모델명	정격전류	A	B	C	D	E	도면
OFIT2-25003T-S-U	UT-3	3A	200	100	70	185	80	UT-3
OFIT2-25005T-S-U	UT-5	5A						UT-5
OFIT2-25006T-S-U	UT-6	6A						UT-6
OFIT2-25007T-S-U	UT-7	7A						UT-7
OFIT2-25010T-S-U	UT-10	10A						UT-10
OFIT2-25015T-S-U	UT-15	15A						UT-15
OFIT2-25020T-S-U	UT-20	20A						UT-20
OFIT2-25030T-S-U	UT-30	30A	240	96	91.6	225	50	UT-30
OFIT2-25040T-S-U	UT-40	40A						UT-40
OFIT2-25050T-S-U	UT-50	50A						UT-50
OFIT2-25060T-S-U	UT-60	60A						UT-60
OFIT2-25065T-S-U	UT-65	65A						UT-65
OFIT2-25075T-S-U	UT-75	75A						UT-75
OFIT2-25080T-S-U	UT-80	80A	286	118	111.8	270	68	UT-80
OFIT2-25100T-S-U	UT-100	100A	286	118	111.8	270	68	UT-100
OFIT2-25120T-S-U	UT-120	120A	320	126	118.8	304	72	UT-120
OFIT2-25150T-S-U	UT-150	150A	320	126	118.8	304	72	UT-150
OFIT2-25200T-S-U	UT-200	200A	346	140	135.8	330.2	72	UT-200
OFIT2-25250T-S-U	UT-250	250A	346	140	135.8	330.2	72	UT-250
OFIT2-25300T-S-U	UT-300	300A	580	280	220	540	240	UT-300
OFIT2-25350T-S-U	UT-350	350A						UT-350
OFIT2-25400T-S-U	UT-400	400A						UT-400

OFIT2-T-S3 Series

■ Specifications

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

model	OFIT2-25/45***T-S3
item	3	5	6	7	10	15	20	30	40	50	60	65	75	80	100	120	150	200	250	300	350	400	450	500	550	600	650	700
Rated voltage (AC,DC)	250V/380V/450V/500V
Rated current (AC,DC)	3A	5A	6A	7A	10A	15A	20A	30A	40A	50A	60A	65A	75A	80A	100A	120A	150A	200A	250A	300A	350A	400A	450A	500A	550A	600A	650A	700A
Test voltage	1,500VAC
Isolation resistance	300MΩ (1,000V, 1Min)
Leakage current	100mA max(1,500VAC)
Operating temperature	-20℃ ~ +85℃

■ Dimensions [mm]

※좌우로 스크롤 하시면 가려진 내용이 보입니다.

250V 형식명	모델명	정격전류	A	B	C	D	E	도면
OFIT2-25003T-S3	ST-3	3A	200	100	70	185	80	ST-3
OFIT2-25005T-S3	ST-5	5A						ST-5
OFIT2-25006T-S3	ST-6	6A						ST-6
OFIT2-25007T-S3	ST-7	7A						ST-7
OFIT2-25010T-S3	ST-10	10A						ST-10
OFIT2-25015T-S3	ST-15	15A						ST-15
OFIT2-25020T-S3	ST-20	20A						ST-20
OFIT2-25030T-S3	ST-30	30A	240	120	100	225	100	ST-30
OFIT2-25040T-S3	ST-40	40A						ST-40
OFIT2-25050T-S3	ST-50	50A						ST-50
OFIT2-25060T-S3	ST-60	60A						ST-60
OFIT2-25065T-S3	ST-65	65A						ST-65
OFIT2-25075T-S3	ST-75	75A						ST-75
OFIT2-25080T-S3	ST-80	80A	345	160	140	323	135	ST-80
OFIT2-25100T-S3	ST-100	100A	345	160	140	323	135	ST-100
OFIT2-25120T-S3	ST-120	120A	366	160	140	345	135	ST-120
OFIT2-25150T-S3	ST-150	150A	366	160	140	345	135	ST-150
OFIT2-25200T-S3	ST-200	200A	416	160	140	396	135	ST-200
OFIT2-25250T-S3	ST-250	250A						ST-250
OFIT2-25300T-S3	ST-300	300A						ST-300
OFIT2-25350T-S3	ST-350	350A	470	210	210	448	172	ST-350
OFIT2-25400T-S3	ST-400	400A						ST-400
OFIT2-25450T-S3	ST-450	450A						ST-450
OFIT2-25500T-S3	ST-500	500A	580	280	220	540	240	ST-500
OFIT2-25550T-S3	ST-550	550A						ST-550
OFIT2-25600T-S3	ST-600	600A						ST-600
OFIT2-25650T-S3	ST-650	650A						ST-650
OFIT2-25700T-S3	ST-700	700A						ST-700
